1961-1964 Impala Chassis | Roadster Shop SPEC

Description

Transform the ride quality and handling of your 1961-1964 Impala and B-Body with a SPEC Series chassis by Roadster Shop.  The chassis design replaces your cars antiquated suspension and steering with a 4-link, rack & pinion steering and adjustable coilovers at all four corners. Roadster Shop’s “Laser Rail” technology CNC cuts and contours frame rails and crossmembers for a perfect fit and true bolt-on installation. Kilgore Kustoms offers these chassis kits in our Stage 1 configuration that includes critical options. It’s the stuff that you will need anyway.  This chassis has been pre-ordered with the following upgrades, features and specifications. Custom orders are available upon request.

**** NOTE: Contact us to purchase this chassis: 470-892-5025. A 50% deposit is required ****

Impala and B-Body SPEC Chassis Features

• RS exclusive “Laser Rails” precision CNC laser cut and contoured
• Crossmembers and chassis bracing to allow for 3″•exhaust
• No floor modifications are required for chassis installation
• Trans tunnel mods may be necessary for larger T-56 and 4L80 transmissions
• Utilizes factory body, bumper, and core support mounts for a true bolt-on installation

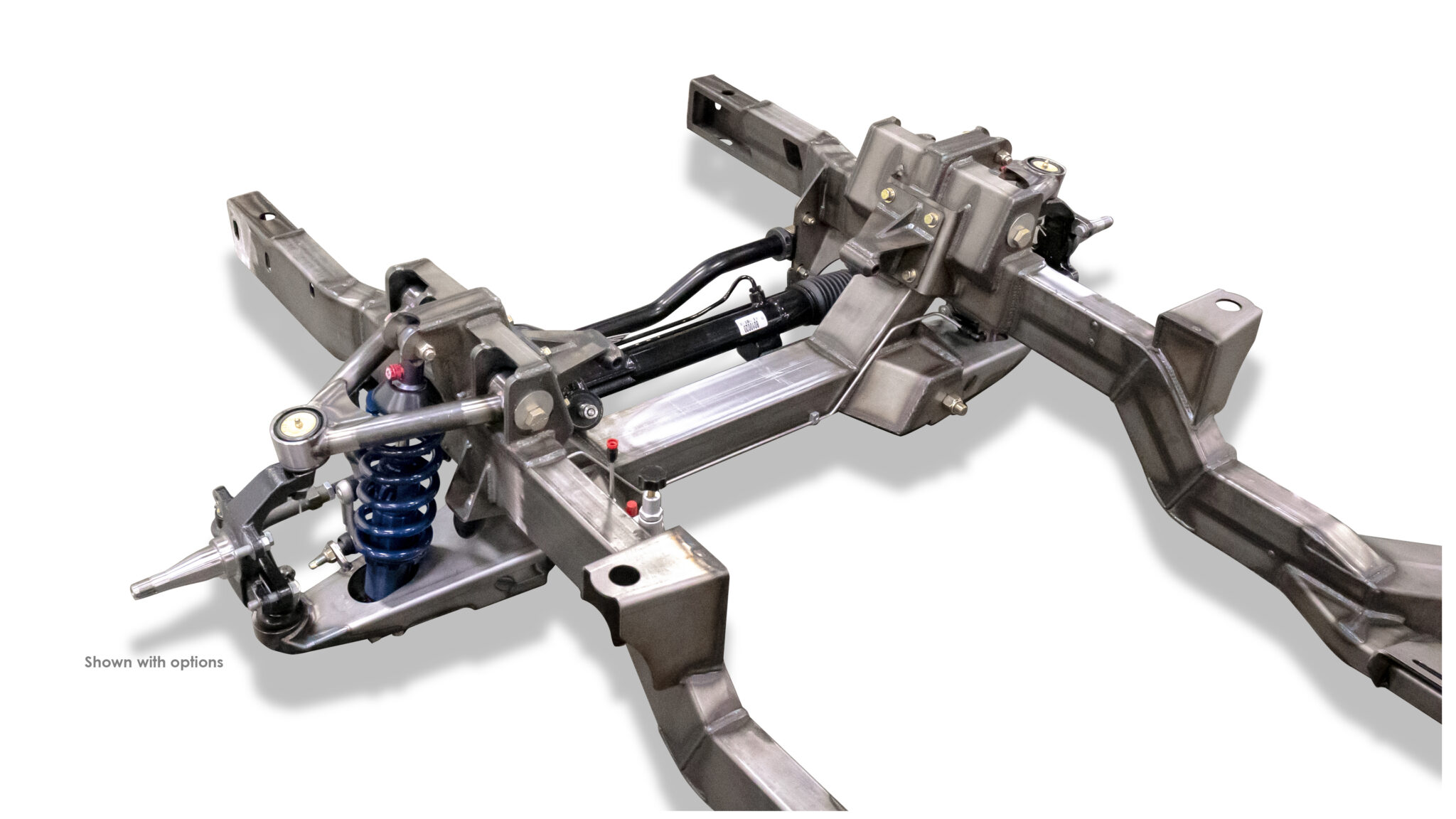

Front Suspension – SPEC IFS

• Wilwood Pro Spindle with Chevy 5 × 4.75″ bolt pattern
• Roadster Shop SV by Fox fixed valve mono-tube coilovers
• Power rack & pinion steering
• Easy to adjust upper a-arm eccentric mounts for fast and accurate alignments

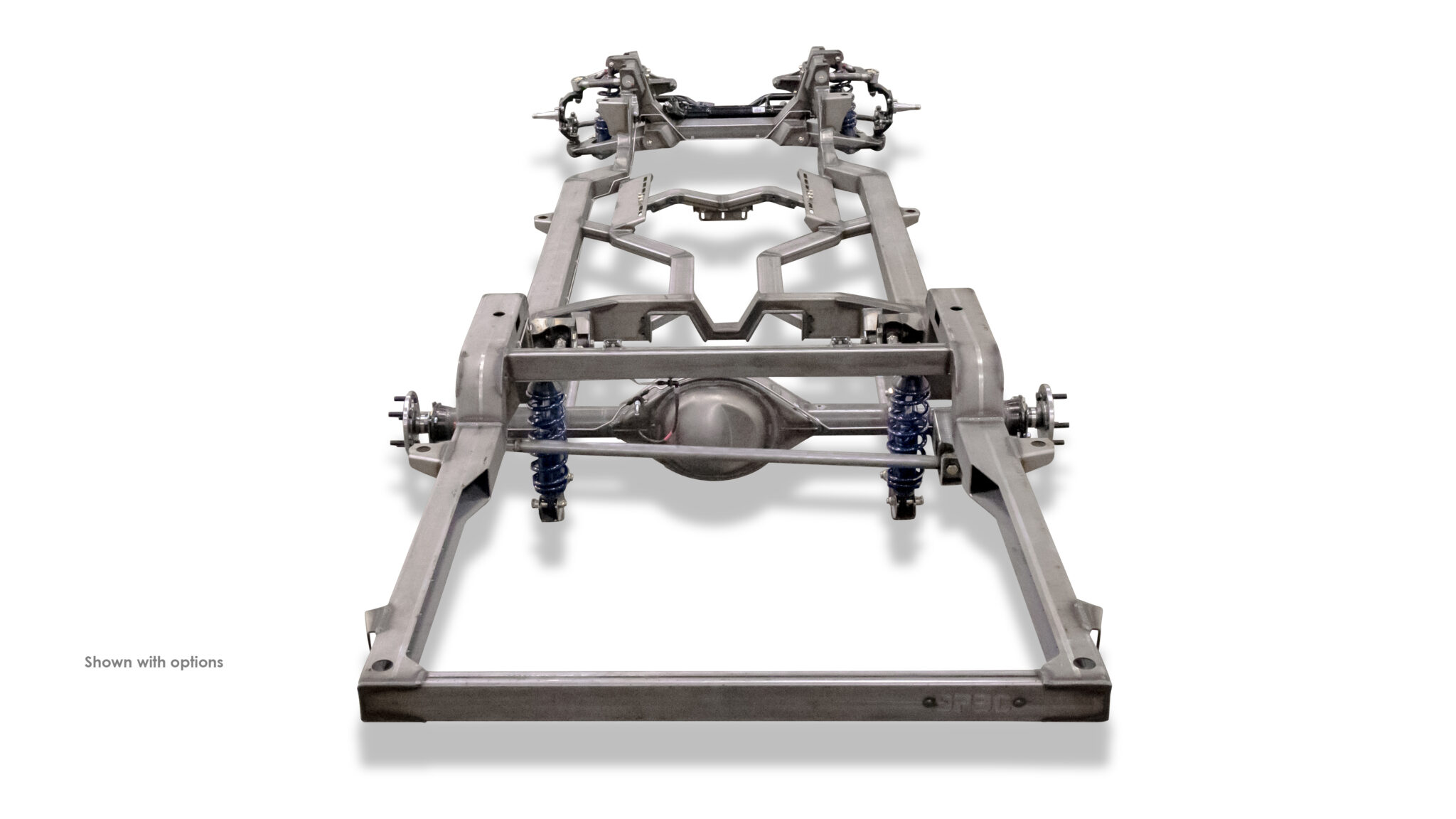

SPEC Rear Suspension:

• Parallel 4-Bar rear suspension
• RS SV by Fox fixed valve mono-tube coilovers
• Ford 9″ housing with 31 spline axles with Chevy 5 × 4.75″ bolt pattern
• Standard rear track width for proper brake clearance
• Does not include engine/transmission mounts

Stage 1 Options:

• Body Mount Kit
• Weld-in Body Mount Bungs for added mid-mounts
• Floor-Pan Tin Kit (specify year)
• Front Sway Bar
• Stainless-steel Brake Line Package
