1964-1967 Chevelle Chassis | Roadster Shop SPEC

Description

SPEC Series chassis by Roadster Shop will transform the ride quality and handling of your 1964-1967 Chevelle. It also allows you to lower your car for improved looks.  The 100% fabricated chassis is significantly stronger than your original frame. A custom 4-link, fabricated front control arms, and forged C6 Vette-style spindles replace your car’s antiquated suspension. Steering is upgraded to rack-and-pinion specification with improved geometry. The adjustable coilovers at all four corners are a collaboration between Roadster Shop and Fox Factory. Roadster Shop’s “Laser Rail” technology CNC cuts and contours frame rails and crossmembers to closely follow your car’s underbody contours. Kilgore Kustoms orders Roadster Shop SPEC chassis kits with critical upgrades, including pre-bent stainless steel brake hard lines, a heavy-duty front sway bar, and the correct engine/trans mounting brackets for your combination, such as pre-made trans tunnel sheetmetal kit Small Block Chevy, Big Block Chevy, Chevy LS, and various transmissions.   We order our chassis kits with RS SV by Fox coilovers that help you fine-tune ride height. This chassis has been pre-ordered with the following upgrades, features and specifications. Custom orders are available upon request. Chassis kits with Pontiac and Chevelle wagon rear frame rails can be custom ordered.

**** NOTE: Contact us to purchase this chassis: 470-892-5025. A 50% deposit is required ****

64-67 Chevelle and SPEC Chassis Features

• RS exclusive “Laser Rails” precision CNC laser cut and contoured
• Crossmembers and chassis bracing to allow for 3″ exhaust
• Narrowed rear frame rails for mini-tub
• Trans tunnel and driveshaft tunnel sheet metal tin kit
• Utilizes factory body, bumper, and core support mounts for a true bolt-on installation

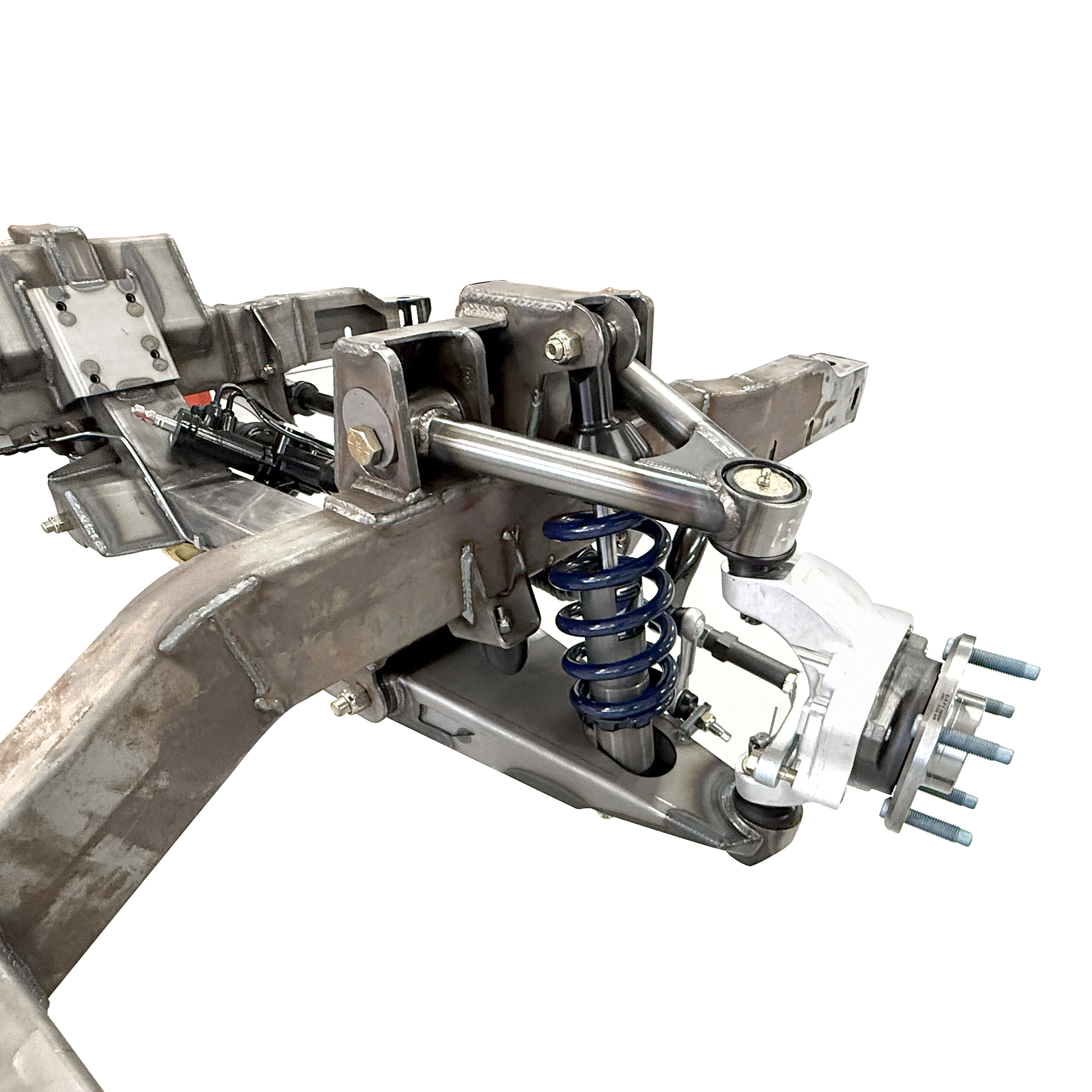

Front Suspension – SPEC IFS

• Roadster Shop RS Forged Spindle with Chevy 5 × 4.75″ bolt pattern
• Roadster Shop SV by FOX fixed valve mono-tube coilovers
• Power rack & pinion steering
• Easy to adjust upper a-arm eccentric mounts for fast and accurate alignments

SPEC Rear Suspension:

• Parallel 4-Bar rear suspension
• RS by Fox fixed valve mono-tube coilovers
• Ford 9″ housing with 31 spline axles with Chevy 5 × 4.75″ bolt pattern
• Standard rear track width for proper brake clearance

Included Options:

• Frame-Side Engine Mount Brackets SBC/BBC
• Trans Crossmember
• Trans / Driveshaft Tunnel sheet metal kit
• Front Sway Bar
• SS Brake Line Package
